Introduction, Working Principle and Application of Automatic Carton Partition Assembler Machine

The automatic carton partition assembler machine is a highly automated piece of equipment designed for the efficient assembly of corrugated cardboard partitions (also known as cell dividers or grid inserts) used inside carton boxes. It replaces the traditional manual assembly process, significantly improving production speed, accuracy, and consistency while reducing labor costs. This article provides a comprehensive overview of the machine's definition, core working principle, structural components, key features, and wide-ranging industrial applications.

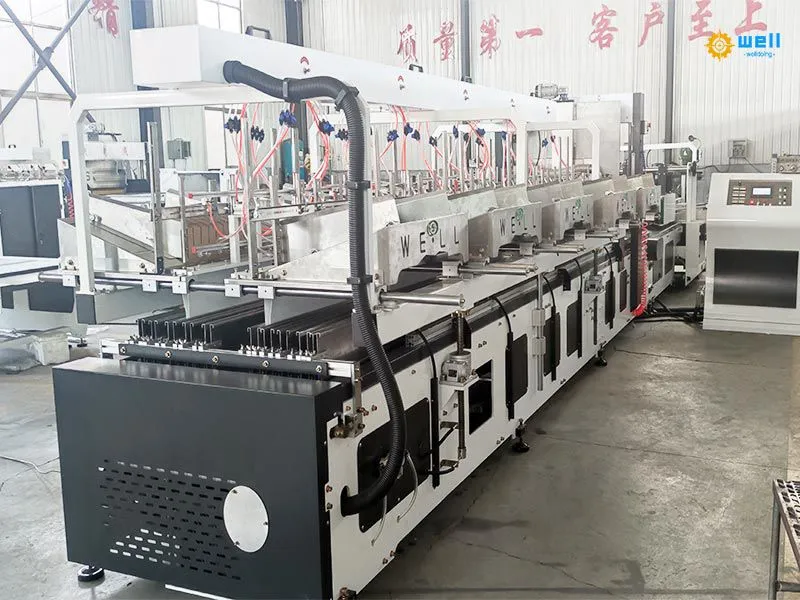

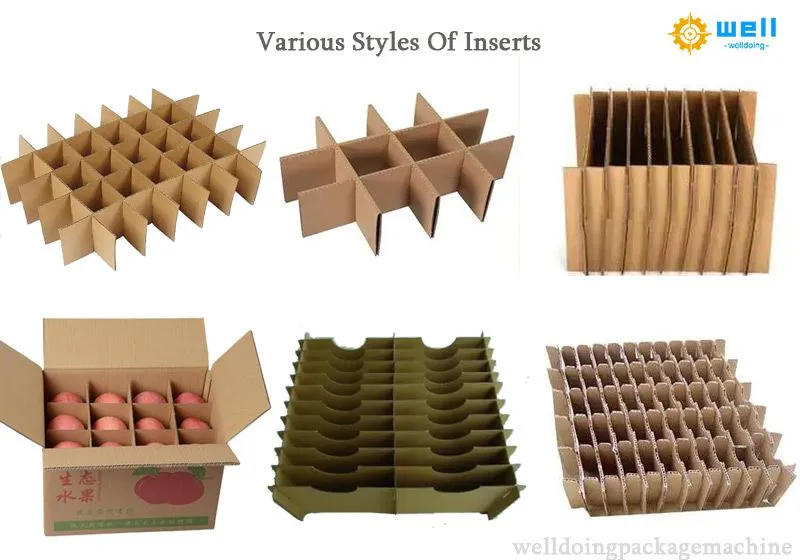

An automatic carton partition assembler machine is a specialized mechatronic device in the packaging machinery sector, engineered to automatically feed, align, and interlock pre-grooved vertical and horizontal corrugated cardboard strips into a complete grid or partition structure. These partitions are inserted into cartons to create separate compartments, providing essential shock protection, fixed positioning, and organized storage for products during transportation and storage.

Traditionally, carton partitions were assembled manually, a process that was labor-intensive, slow (typically 5-10 partitions per minute), prone to human error (such as misalignment or loose fitting), and inconsistent in quality. With the rapid growth of e-commerce, food & beverage, electronics, and glassware industries, the demand for high-volume, high-quality packaging solutions surged. The automatic carton partition assembler was developed to meet this demand, achieving production speeds of 40-60 partitions per minute and ensuring uniform product quality. It has become an indispensable piece of equipment in modern corrugated packaging production lines.

• High Efficiency: Drastically increases output compared to manual labor, significantly boosting overall packaging line productivity.

• Labor Savings: Reduces reliance on manual assembly, cutting down labor costs and associated management expenses.

• Precision & Consistency: Ensures every partition is accurately assembled with perfect interlocking slots, guaranteeing structural integrity.

• Versatility: Easily adjustable to accommodate various partition sizes (length, width, height), cell counts, and cardboard thicknesses (1.5-8mm).

• Automation & Intelligence: Equipped with PLC control and touchscreen HMI for easy operation, parameter setting, and fault detection.

• Stability: Features a robust mechanical structure and stable pneumatic/electric control systems for reliable 24/7 operation.

•


The automatic carton partition assembler operates on the principle of synchronized, multi-station automated assembly, integrating mechanical transmission, pneumatic actuation, vacuum adsorption, and servo control technologies. The process is a continuous, automated flow consisting of six key stages:

1 Raw Material Preparation

The machine processes pre-cut and pre-slotted corrugated cardboard strips (vertical and horizontal). These strips are manually or automatically loaded into separate vertical and horizontal paper racks.

2.2 Vacuum Suction & Feeding

• Vertical Strips: A vacuum suction cup system securely picks up the vertical strips one by one from the stack and feeds them into the vertical positioning track.

• Horizontal Strips: Simultaneously, the horizontal strips are fed via a servo-driven paper feeding system into the horizontal positioning track, ensuring precise and synchronous feeding.

2.3 Precise Positioning & Alignment

Both vertical and horizontal strips are conveyed to the assembly station, where photoelectric sensors and mechanical baffles ensure they are accurately aligned according to the programmed grid dimensions. The machine allows for electric adjustment of the grid spacing and height to match specific requirements.

2.4 Cross Interlock Assembly

This is the core process. The vertical and horizontal strips, each with pre-cut slots, are driven by pneumatic cylinders and servo motors to move towards each other. The slots of the horizontal strips precisely engage with the slots of the vertical strips, interlocking them together to form a complete, rigid grid partition. The machine performs this cross insertion simultaneously for high efficiency.

2.5 Forming & Delivery

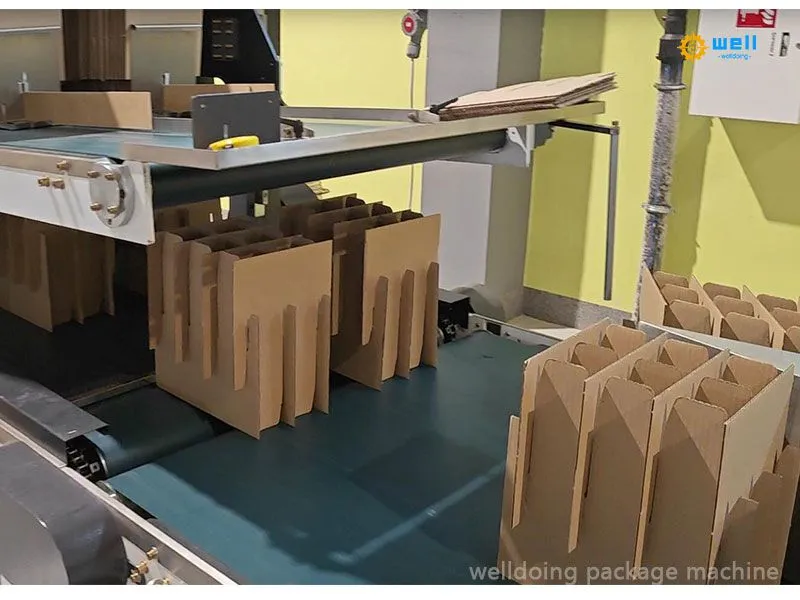

Once assembled, the complete partition is conveyed out of the assembly area. Most high-speed models feature a dual-station paper output, allowing continuous production without interruption and doubling the effective output efficiency.

2.6 Fault Detection & Control

The machine is equipped with sensors for fault detection. If a paper jam, misfeed, or other abnormality occurs, the system automatically stops and alerts the operator via the HMI, preventing damage to the machine or materials. The entire process is controlled by a PLC program, coordinating the actions of all components seamlessly.

The automatic carton partition assembler machine represents a significant advancement in packaging automation technology. By automating the complex and laborious process of partition assembly, it delivers unparalleled improvements in efficiency, quality, and cost-effectiveness. As global supply chains demand faster, more reliable, and more sustainable packaging solutions, the application of this machine will continue to expand, solidifying its role as a critical piece of equipment in the modern packaging manufacturing industry. Its adaptability to various carton sizes and product types ensures its relevance across a vast spectrum of industrial sectors.
