Partition Assembly Machine: The Ultimate Guide to Automated Partition Packaging Efficiency

In the fast-paced modern packaging and corrugated board manufacturing industry, optimizing production efficiency, ensuring precise assembly, and cutting down labor overhead are key factors that determine a factory’s market competitiveness. APartition Assembly Machine, widely known as an automatic paper partition assembler or corrugated partition assembly machine, is a specialized automated packaging device built for fast, accurate assembly of corrugated board, chipboard, and paper grid partitions. It fully replaces slow, error-prone traditional manual partition assembly workflows, enabling packaging plants, beverage manufacturers, electronic packaging factories, and food processing enterprises to achieve high-volume, standardized, zero-defect partition production. This in-depth guide covers the working principle, core features, industrial applications, and key benefits of a modern Partition Assembly Machine, explaining why it is a must-have automated solution for contemporary packaging production lines.

What Is a Partition Assembly Machine?

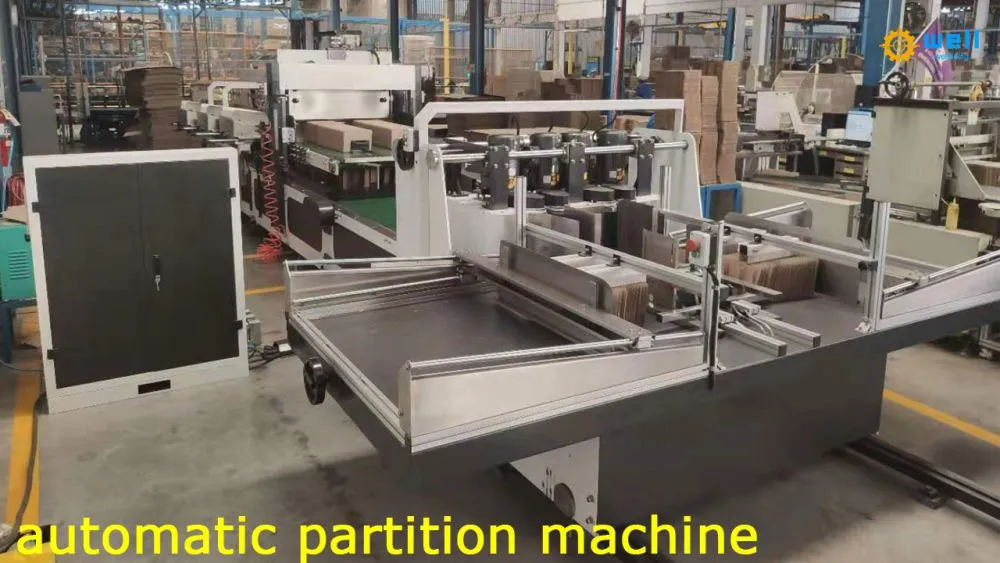

A Partition Assembly Machine is a fully automated industrial system designed specifically for cross insertion, precise assembly, and locking of pre-slotted paper and corrugated partition boards. Traditional partition manufacturing relies entirely on workers manually splicing horizontal and vertical cardboard strips to form multi-cell grid structures — a process that is time-intensive, labor-heavy, and prone to inconsistent sizing and uneven assembly. Modern automatic partition assembly machines integrate advanced pneumatic transmission, high-precision servo control, stable vacuum adsorption feeding, and intelligent PLC control systems to automatically complete full-process partition production, including material feeding, positioning, alignment, cross assembly, and finished forming with minimal human intervention.

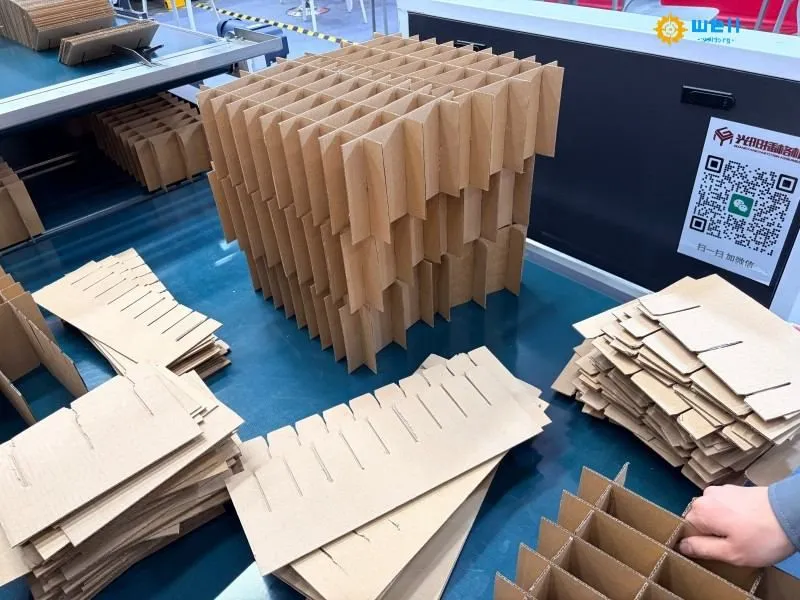

This automated partition equipment supports diverse specifications, fitting 2mm to 10mm thick corrugated cardboard and chipboard materials. It can efficiently produce common multi-cell grid partitions, including 12-cell, 24-cell, and custom grid layouts, which are extensively used for inner box cushioning and anti-collision protection for fragile industrial and consumer products. By adopting a professional Partition Assembly Machine, packaging manufacturers effectively resolve typical industry pain points: low manual output, unstable finished product quality, high labor costs, and slow production cycles, realizing standardized, large-scale, and cost-effective partition manufacturing.

Core Working Principle of Automatic Partition Assembly Machine

High-quality Partition Assembly Machine models feature highly standardized, fully automated operation workflows, requiring almost no manual operation during continuous production. The entire working system consists of four core, interconnected processes, forming a stable, high-efficiency closed-loop production system that guarantees consistent output and reliable finished quality for paper partition products.

The first stage is automatic intelligent feeding. Equipped with vacuum adsorption vertical feeding and servo-driven horizontal feeding technology, the Partition Assembly Machine features an electrically adjustable lifting paper rack that stably absorbs raw cardboard materials. This design effectively prevents material jams, missing feeds, and uneven feeding, ensuring uninterrupted continuous production. The second stage is high-precision positioning and alignment. A built-in industrial positioning system calibrates horizontal and vertical cardboard strips in real time, ensuring perfect docking of pre-slotted grooves and completely eliminating assembly deviations common in manual production.

The third stage is automatic cross assembly and structural locking. With a synchronized transmission mechanical structure, the Partition Assembly Machine rapidly completes cross insertion and interlocking of horizontal and vertical cardboard strips, forming sturdy, integrated grid partitions that avoid loosening, deformation, or disconnection. The final stage is finished product output and intelligent fault monitoring. The machine is fitted with a real-time detection system that automatically identifies common faults such as cardboard blockages, material shortages, and position deviations. It triggers automatic shutdown protection and alarm reminders to prevent equipment damage and defective products, maintaining long-term stable and high-yield production.

Key Features and Advantages of Partition Assembly Machine

Compared with traditional manual assembly methods and outdated semi-automatic partition equipment, the modern Partition Assembly Machine delivers outstanding advantages in production efficiency, assembly accuracy, operational simplicity, and long-term cost performance. It perfectly matches the high-standard, large-batch production demands of medium and large packaging enterprises, making it a core upgrade equipment for automated packaging lines.

1. Ultra-high production efficiency and significant labor cost savings. Manual partition assembly is restricted by human speed and endurance, resulting in low daily output, unstable efficiency, and high labor dependence. A fully automatic Partition Assembly Machine supports 24-hour continuous high-speed operation, reaching a production speed of 46 groups per minute for 12-cell partitions and 42 groups per minute for 24-cell partitions. A single unskilled operator can manage the entire equipment, replacing 4 to 6 manual workers. This drastically cuts labor costs, solves the industry’s labor shortage problem, and greatly improves overall production throughput.

2. Precision assembly for consistent, high-quality partitions. Powered by full servo drive and precise pneumatic control, the Partition Assembly Machine achieves millimeter-level assembly accuracy. All finished paper partitions feature uniform specifications, tightly fitted grid structures, consistent cell spacing, and zero structural loosening or deformation. It effectively eliminates common manual defects such as misplaced grids, uneven assembly, and irregular sizing, ensuring stable anti-collision and protective performance for packaged products.

3. Wide compatibility and flexible specification adjustment. Designed for versatile industrial use, thePartition Assembly Machine supports flexible adjustment of board thickness, grid cell size, and assembly dimensions, compatible with 2–10mm corrugated board and solid chipboard. The horizontal grating height and feeding table height can be electrically adjusted in real time, allowing fast switching between production specifications. It easily meets customized partition packaging needs for beverages, glassware, precision electronic parts, fresh fruits, and other diversified products.

4. Intelligent safe operation with low maintenance costs. Equipped with an intuitive PLC human-machine touchscreen control panel, the Partition Assembly Machine features simple operation logic that allows workers to master full operation procedures in a short training period. The built-in self-diagnosis and alarm system automatically detects equipment abnormalities, preventing production halts and defective output. Adopting premium industrial-grade accessories, the machine runs stably with a low failure rate and long service life, minimizing later maintenance costs and production downtime losses.

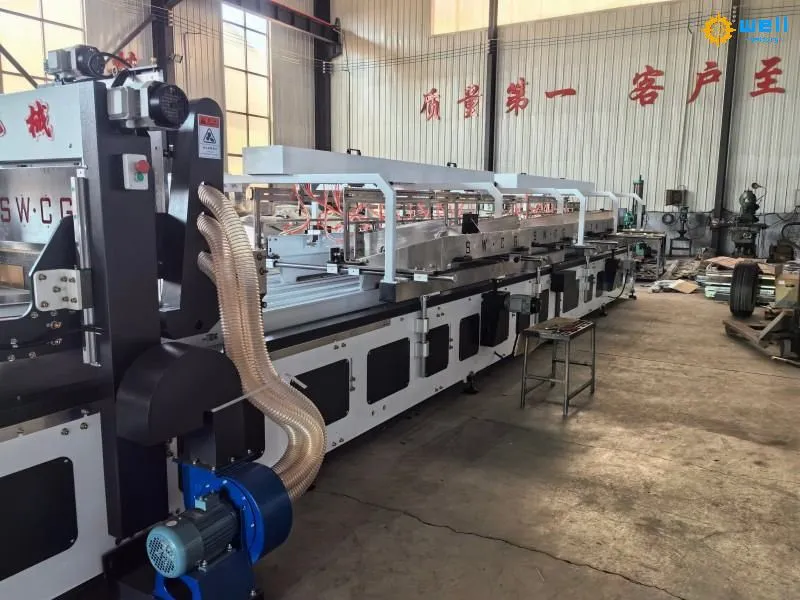

5. Compact structure for space-saving workshop layout. With an optimized integrated mechanical design, the modern Partition Assembly Machine occupies minimal workshop floor space. It can seamlessly connect with upstream cardboard slotting machines and downstream automated packaging lines, realizing end-to-end streamlined production. This perfect line compatibility effectively improves workshop space utilization and overall production line efficiency.

Main Application Scenarios of Partition Assembly Machine

As an indispensable core supporting device for the modern packaging industry, the Partition Assembly Machine serves a wide range of downstream industries. It is mainly applied to production scenarios requiring customized inner box grid partitions and reliable anti-collision product protection, covering most fragile and precision product packaging fields.

Beverage and glassware industry. This is the most mainstream application scenario for thePartition Assembly Machine. Glass bottles, wine bottles, canned drinks, and glass tableware are highly fragile and prone to collision damage during transportation and storage. Automatically assembled paper grid partitions independently fix each single product, effectively resisting extrusion, vibration, and friction, significantly reducing product damage rates in logistics and improving packaging safety.

Electronic and electrical accessories industry. Precision electronic components, circuit boards, and small electrical accessories require ultra-stable packaging to avoid friction damage. Custom grids produced by the Partition Assembly Machine isolate individual products thoroughly, protecting precision parts from scratches and collisions while simplifying product sorting, counting, and assembly processes, greatly improving packaging standardization.

Fruit and food packaging industry. For high-value fresh fruits and packaged snack foods, custom paper partitions manufactured by the Partition Assembly Machine prevent product extrusion, deformation, and deterioration. The neat and standardized grid structure maintains product appearance integrity, elevates product grade, and enhances market competitiveness for food and fruit brands.

Daily chemical and handicraft industry. Cosmetic glass bottles, ceramic crafts, and plastic daily necessities have diverse shapes and personalized packaging requirements. The flexible adjustable design of the Partition Assembly Machine can quickly adapt to various special-shaped product packaging needs, providing customized grid partition solutions for daily chemical and handicraft manufacturers.

Why Choose Automatic Partition Assembly Machine for Modern Packaging Production?

With the continuous upgrading of global intelligent manufacturing and rising labor costs worldwide, traditional manual partition assembly can no longer meet modern enterprises’ demands for large-batch production, high-standard quality, and low-cost operation. Investing in an automatic Partition Assembly Machine has become a key transformation and upgrading choice for packaging manufacturers to enhance core competitiveness.

In terms of cost control, the Partition Assembly Machine reduces manual labor expenses and minimizes defective product losses, allowing enterprises to recover equipment investment in a short cycle. In terms of production capacity, its stable high-speed operation fully copes with peak order pressure and improves delivery efficiency. In terms of quality control, automated standardized assembly achieves zero-error batch production, boosting product qualification rates and brand credibility. Additionally, the intelligent automated production mode helps factories realize refined workshop management and overall production efficiency improvement.

Final Words

ThePartition Assembly Machine is a cost-effective, high-efficiency automated solution tailored for the paper partition manufacturing and packaging industry. It effectively solves core pain points of traditional manual production, including low efficiency, high labor costs, unstable quality, and slow production speed. Featuring high automation, precise assembly, and strong compatibility, it creates tangible economic benefits for both medium-sized packaging workshops and large-scale supporting manufacturing enterprises.

Looking ahead, driven by the development of industrial intelligence, the Partition Assembly Machine will evolve toward higher operating speed, smarter automatic adjustment, and more customized production functions. It will continue to be an essential core equipment in the global automated packaging supply chain, empowering sustainable development for the packaging manufacturing industry.
